Like all our products, the PRO BASS MIXER was developed to meet the needs of musicians. With 3 channels, the PRO
BASS MIXER is an excellent choice for all musicians (not just bassists) who
use more than one instrument and require separate controls for each. Each compact section per channel features Gain
and Volume controls, Hifizer and Old School filters and an Output Selector switch that lets you choose between
Out 1 and Out 2. In addition channel 3 has switchable 48V Phantom Power for Condenser Mics. And should you need
virtually unlimited channels, you can connect the Out 1 and Out 2 of one PRO BASS MIXER to another giving you
ultimate flexibility.

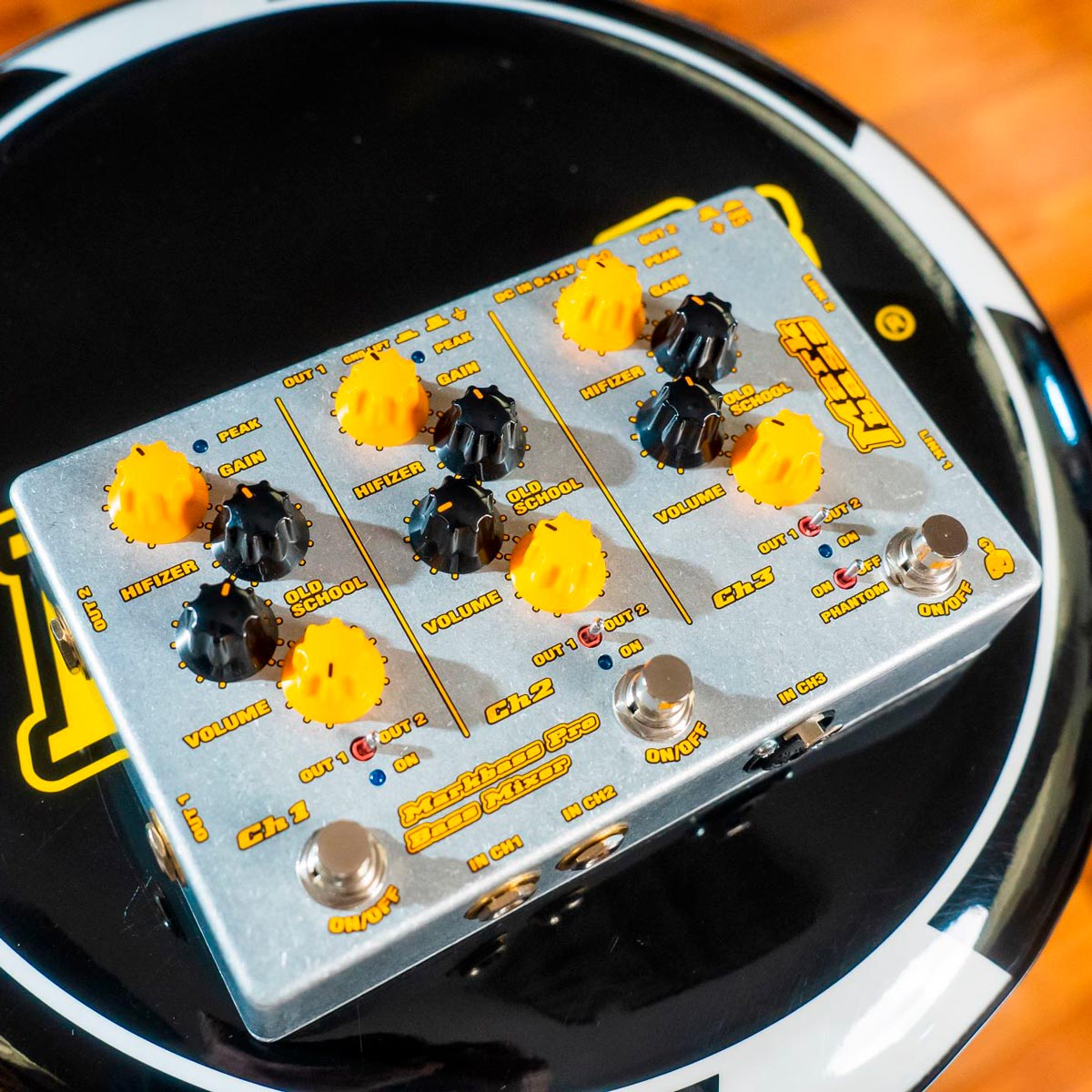

Pro Mixer in a stompbox
The PRO BASS MIXER features 3 channels, designed for musicians who use more than one instrument and require
individual controls for each. It contains everything in a super practical stompbox form that allows each channel
to be switched on or off via footswitch, and much more.
Linkable design
The PRO BASS MIXER unique design allows more than one unit to be connected together, providing virtually unlimited
available channels and flexibility.
Output Selector
Each channel has an Output Selector allowing the choice of 2 outputs to route your channel signal, enabling very
versatile applications.
Simple ed effective controls, Hifizer and Old School Filters
The PRO BASS MIXER features Gain and Volume controls on each channel to optimize the level of each signal. Each
channel has a Hifizer filter (a Pre Shape filter, min @ 700Hz, from 0 to 25dB) that boosts lows and highs, cutting
mids to deliver a hi-fi tone (ideal for slap and pick playing), and each channel also has an Old School filter
(Frequency range from 450Hz to 20kHz) to dial in
a mellow, less modern sound just like its name suggests.
Phantom Power
The combo jack input of CH3 features 48V Phantom Power allowing you to use the XLR input with a condenser
microphone, or with active pickup systems that use a balanced XLR output.
CHANNELS: 3

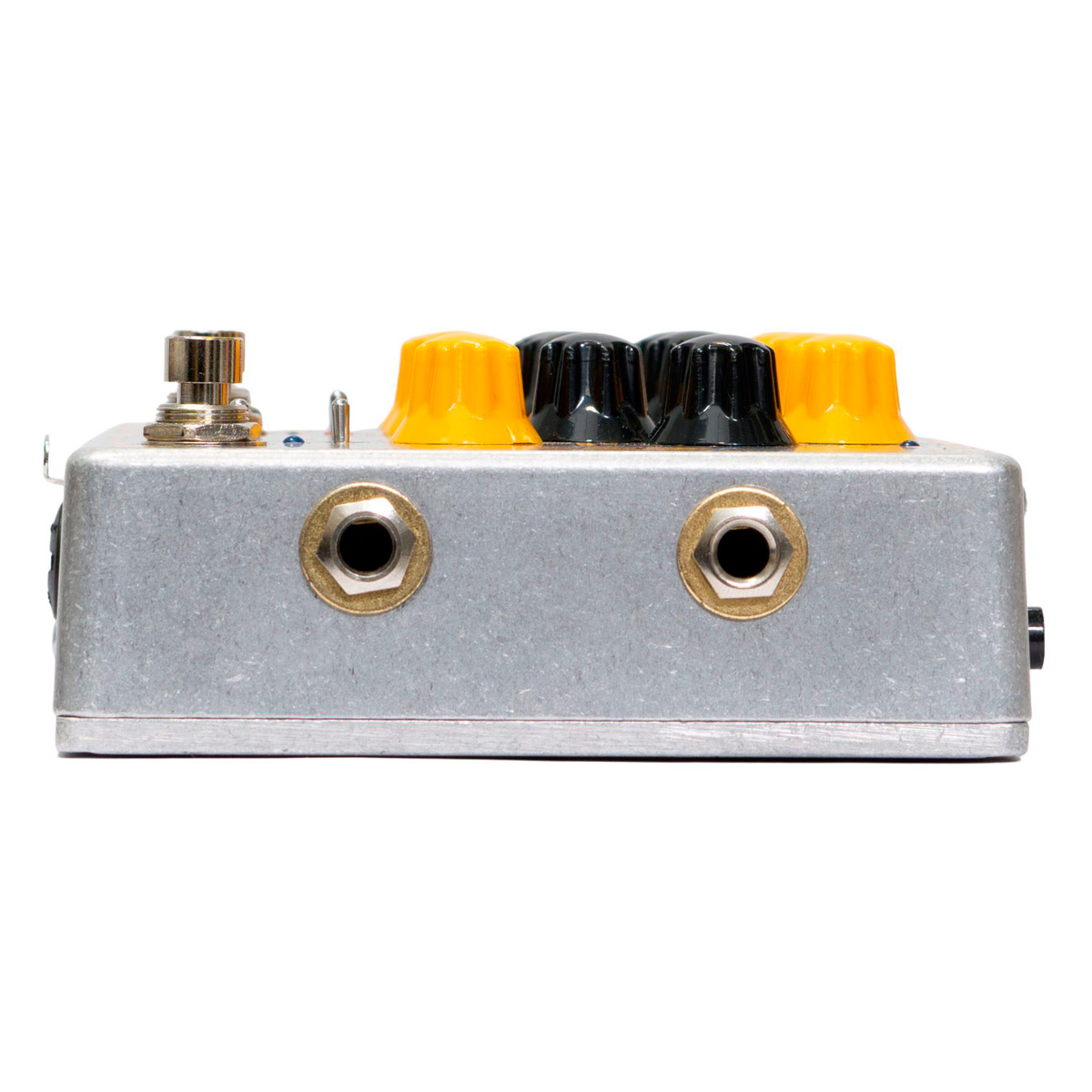

IN CH1 (1/4" jack) and IN CH2 (1/4" jack)
Impedance 1MO, max. voltage 5 Vpp

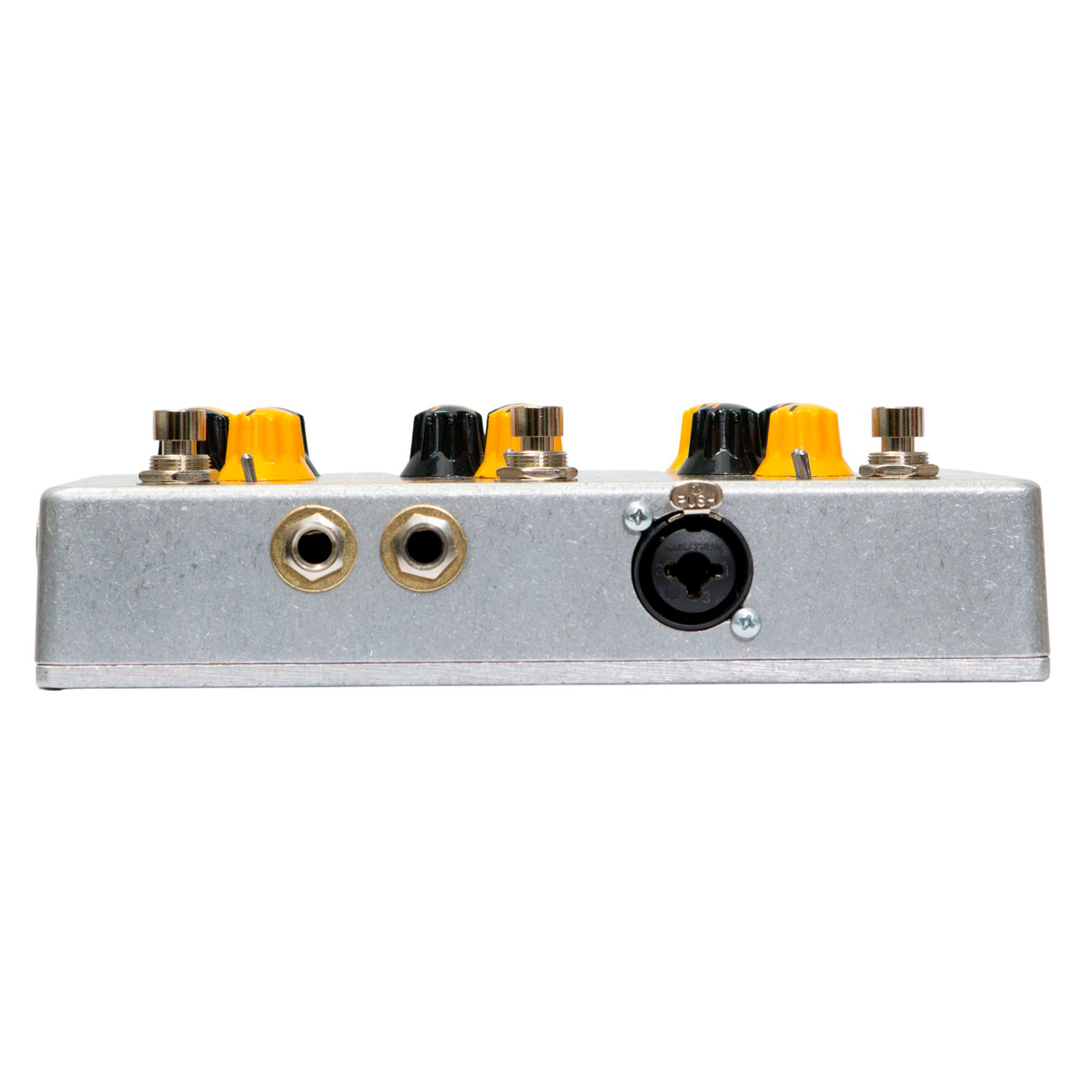

IN CH3 (combo jack): Impedance 22KO, max. voltage 5 Vp
UNBALANCED BALANCED: Impedance 2KO, max. voltage 6 Vpp

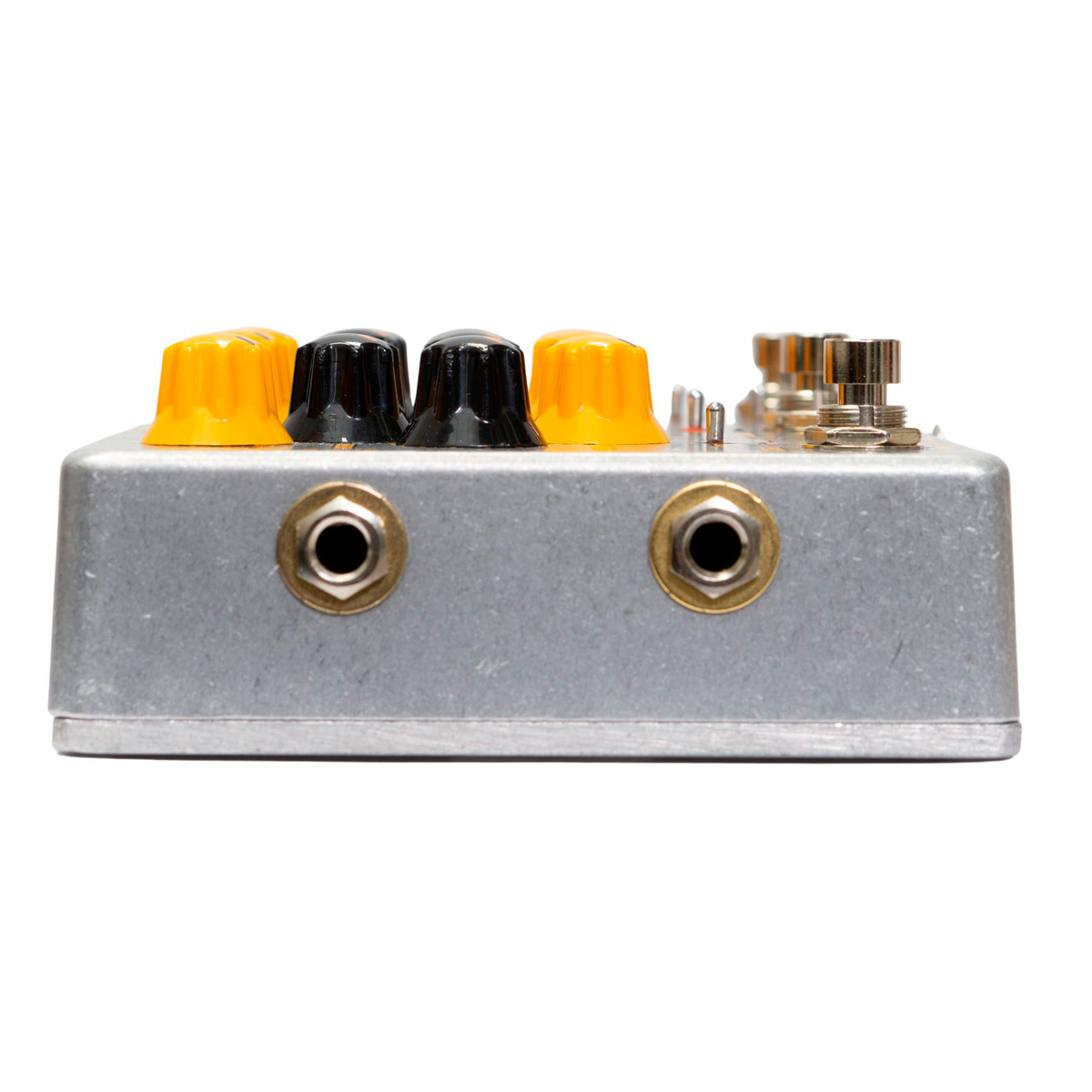

other INPUTS: LINK 1 (1/4" jack) and LINK 2 (1/4" jack)
PHANTOM POWER (48V): on CHANNEL 3 (with on/off switch)

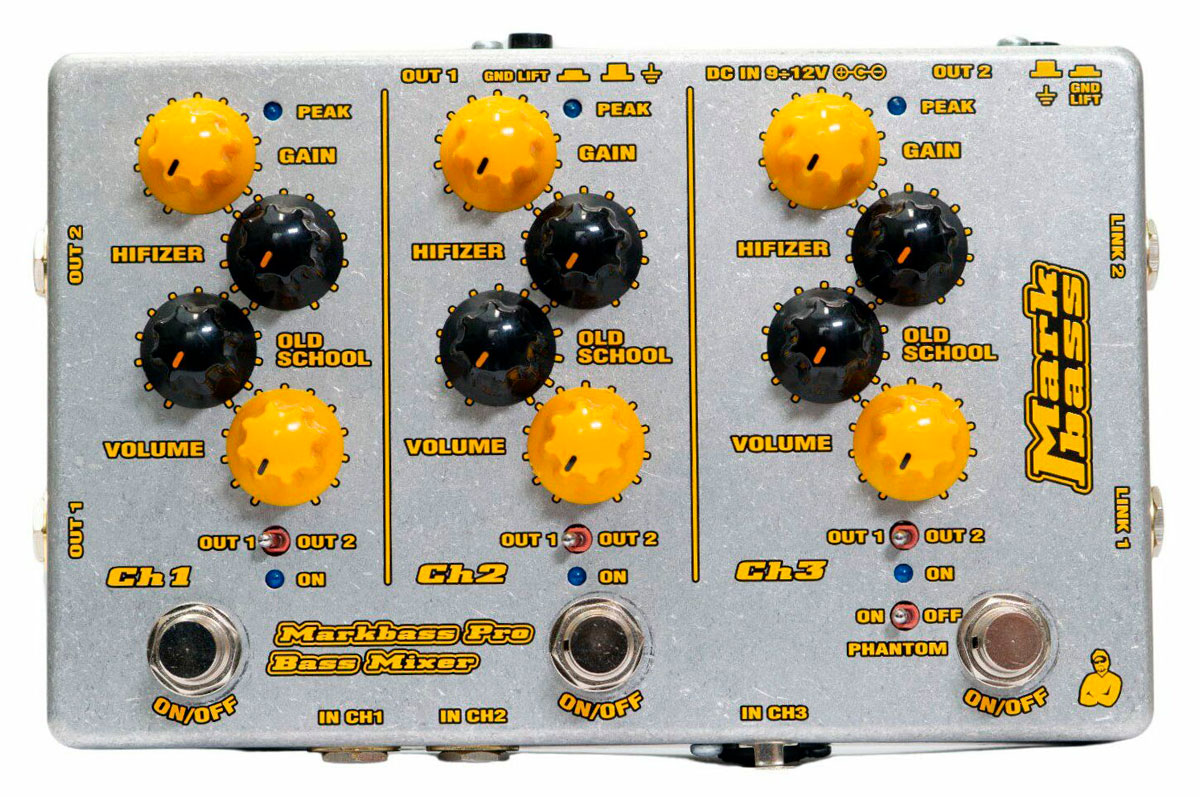

CONTROLS (each channel): GAIN | VOLUME | HIFIZER | OLD SCHOOL
OUTPUT SELECTOR: switch OUT 1 / OUT 2 (on each channel)

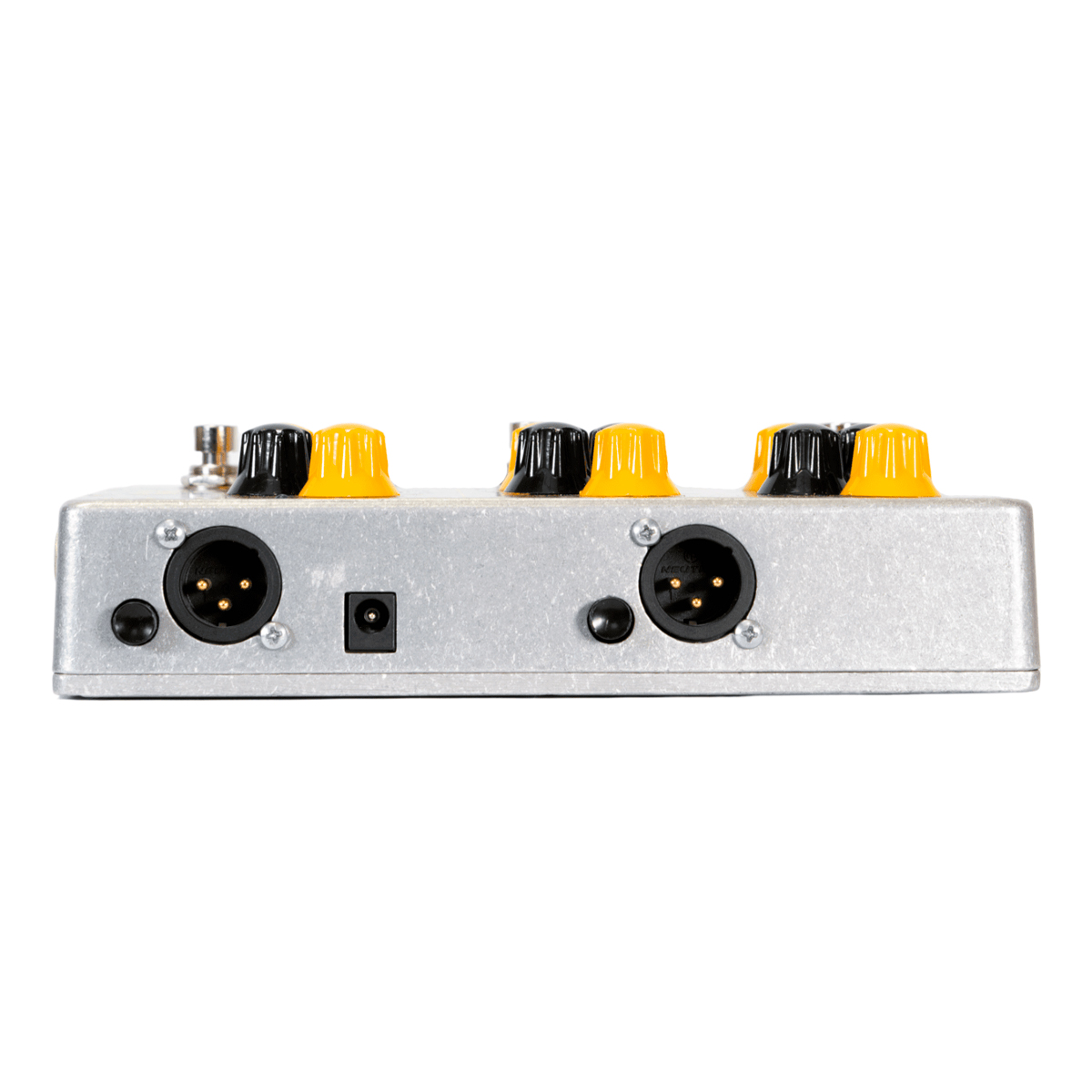

OUTPUTS: BALANCED OUT 1 (with GND) and BALANCED OUT 2 (with GND)
OUT 1 (1/4" jack) and OUT 2 (1/4" jack)
POWER REQUIREMENT: 9 to 12VDC | 120mA (power supply included)
DIMENSIONS (W/D/H): 6.1" x 5" x 2.05" | 15.5cm x 12.7cm x 5.2cm
WEIGHT: 830gr
